Poultry Deep Litter System
For modern poultry producers, the housing environment directly impacts both flock welfare and egg production efficiency. The Layer Deep Litter System is far more than just a flooring solution—it is a complete, turnkey housing system designed for high-performance layer farming. By combining a natural litter floor with engineered modular equipment, this system ensures stable temperature control, dry and hygienic footing, and cost-effective manure management.
This system is ideal for medium to large commercial layer farms with capacities ranging from 20,000 to 100,000 birds. It allows hens to move freely, express natural scratching behaviors, and live in a well-balanced microclimate. With proper ventilation and automated feeding and drinking systems, birds remain healthier and more productive. By investing in a Layer Deep Litter System, farmers benefit from higher egg yields, lower operating costs, and simplified daily management—making it an indispensable choice for modern poultry operations.

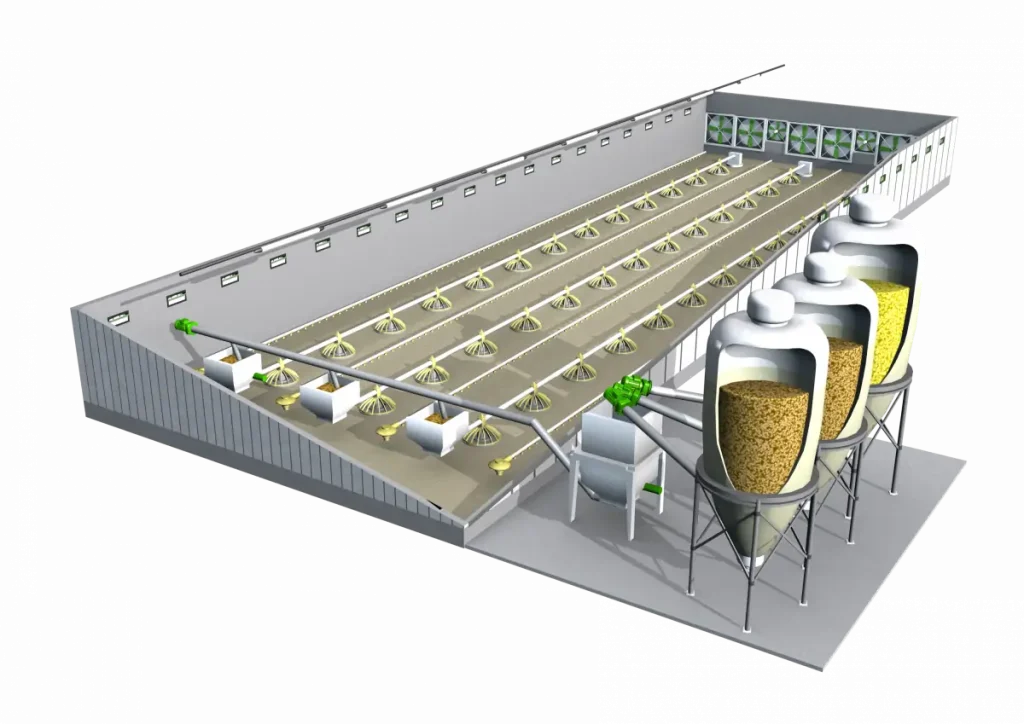

The Deep Litter System (also known as the Deep Litter Chicken House System) consists of the following core components:

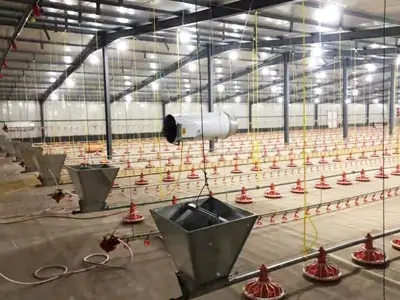

Automatic Main Feed Line System
Automatic Pan Feeding System
Automatic Drinking System
Advanced Ventilation System
Intelligent Environmental Control System
Cooling Pad & Heating System
Together, these systems create a clean, comfortable, and highly efficient living environment for poultry, improving growth performance and reducing disease risk.
Key Advantages:
Simple operation with high automation
Significant labor and feeding time savings
High feed efficiency and better flock uniformity
Poultry House Structure Recommendations:
Eave height: 2.5–3.5 meters
House width: Typically 8–15 meters for steel-structure houses (based on ventilation and equipment layout)
Maximum house length: Recommended not to exceed 140 meters for optimal ventilation performance
This scientific structure ensures proper airflow, temperature balance, and high overall production efficiency.
Recommended Chicken House
| Chicken quantity per building | Equipment type | Recommend building size | Litter material type |
| 5000 birds/building | 3 feed lines, 2 water lines | 45*10*3m | Rice hulls |
| 10000 birds/building | 3 feed lines, 2 water lines | 93*10*3m | Wood shavings |
| 15000 birds/building | 3 feed lines, 4 water lines | 85*12*3m | Straw |
| 20000 birds/building | 4 feed lines, 5 water lines | 120*15*3m | Sawdust |
| 25000 birds/building | 4 feed lines, 5 water lines | 138*16*3m |
Automatic Main Stock Line System

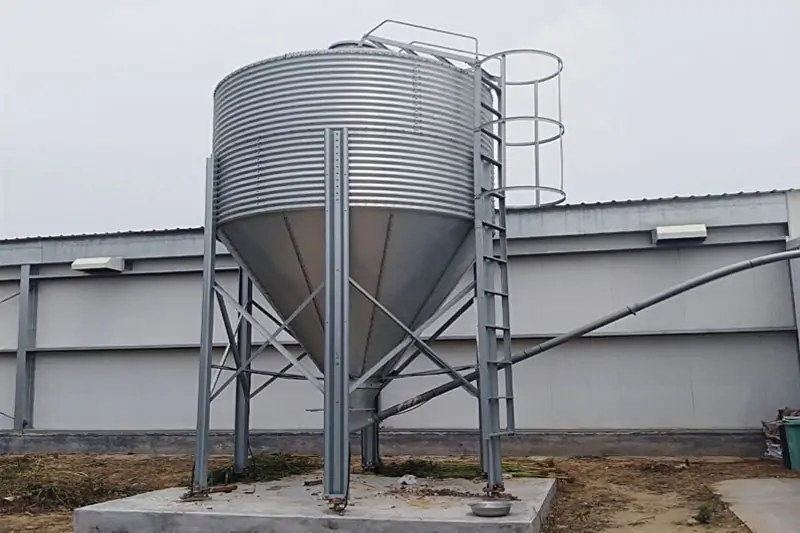

Silo
1. The silo is used for feeding system hopper. 2. Elevated feed to feeding system hopper. 3. Capacity:10 tons,15 tons,20 tons

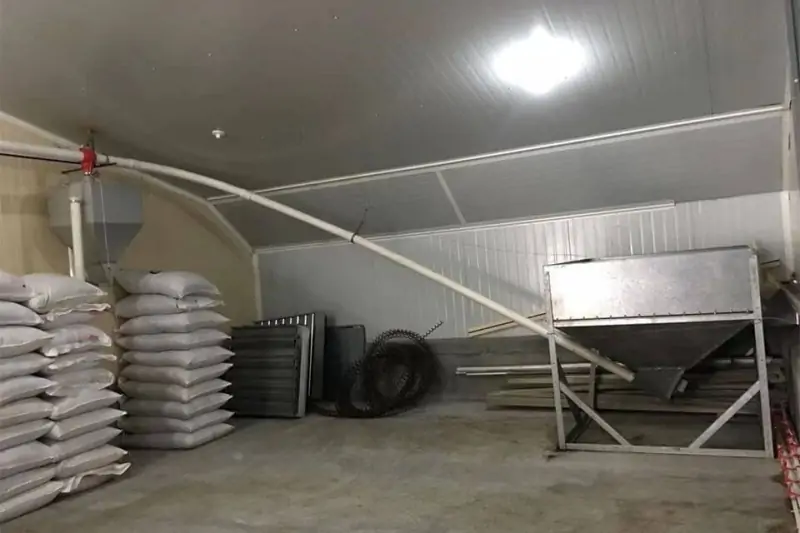

Ground hopper
1. The equipment is used for feeding system hopper. 2.Capacity:800 KG 3.Size:1.2*1.2m
Automatic Pan Feeding System

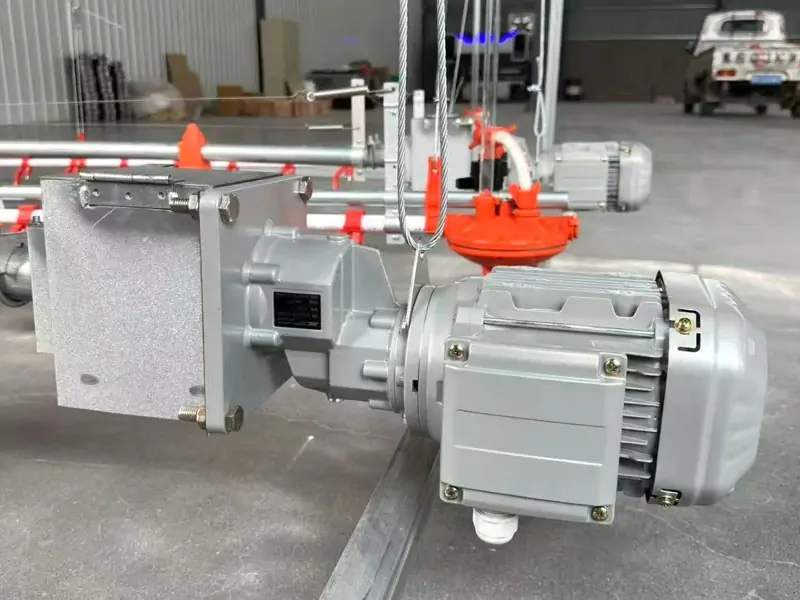

Driving motor
1. 0.75kw,220V,3 phase,60hz 2. Taiwan brand

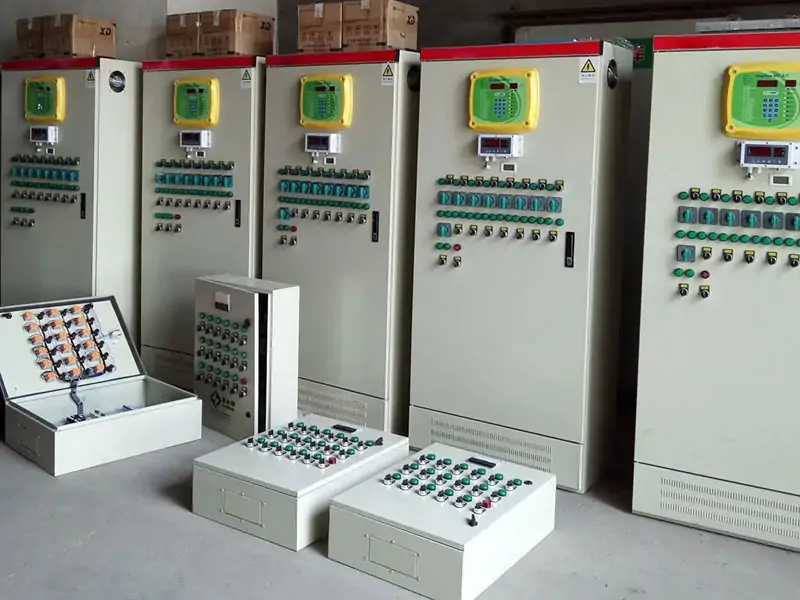

Control box
1. Control pan feeding line; 2. Each pan feeding line can work independently.
Feed pipe with 4 holes
1. Material: hot-dip galvanized steel 2. Zinc coated: 275g/m2 3.Thickness:1.2mm
Feedstuff hopper
1. Material: hot galvanized steel 2.Thickness:1.2mm 3.Zinc coated:275g/m2; 4.Capacity:60 KG

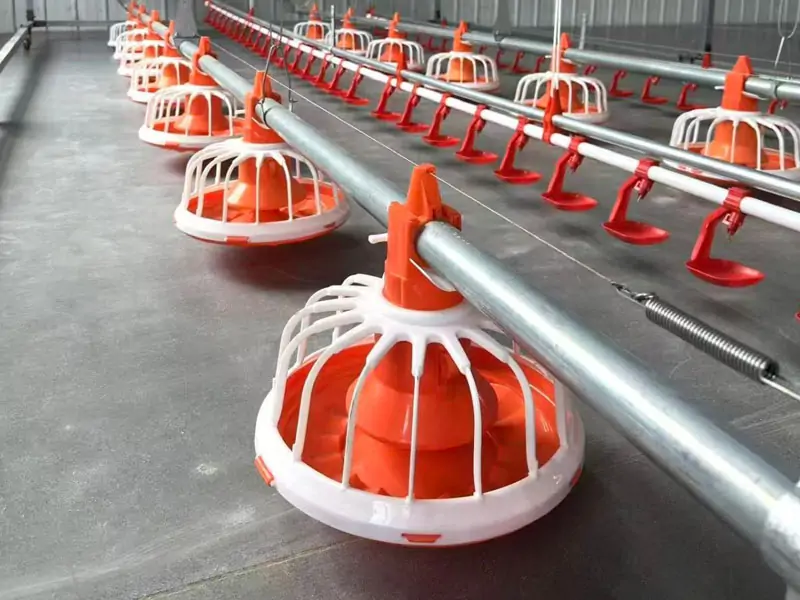

Feed pan
1. Pan diameter 330mm 2.Pan material:100% virgin PE material 3 .Pan capacity:1.5KG, It can suffice any time of rearing. 4. With anti-UV additive 5 . Feed capacity: 12 birds/pan 6. The pan bottom can be used as a starter pan 7. Pan use: starting from 1 day age 8. Cleaning: hang dry , wash by high-pressure water, easy cleaning 9. Bottom shape: wave-shape bottom and flat bottom are all available to choose
Automatic Drinking System

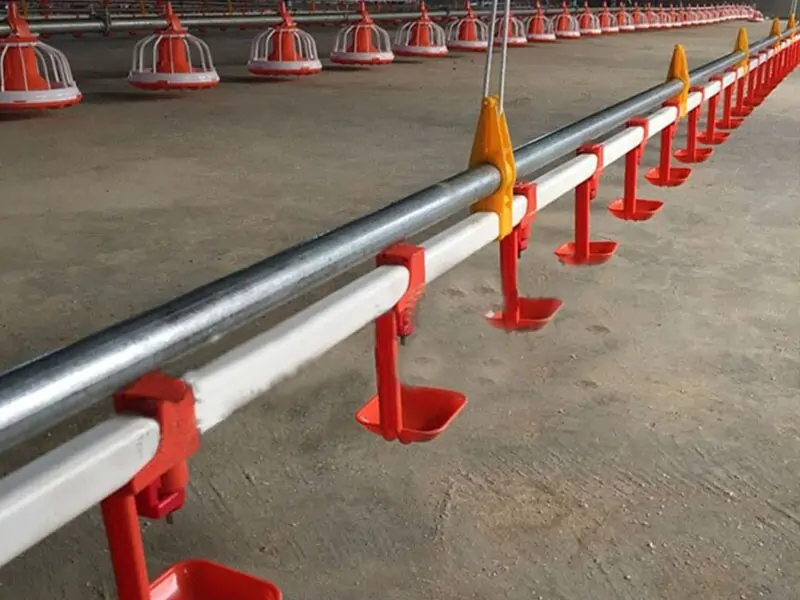

Water pipe and nipple drinker
1. The water connection is all sealed to avoid contact with air and dust, ensuring clean water and preventing water pollution 2. The drinking nipple is designed with high sensitivity, which can ensure 360-degree rotation. 3. Only the chicken peck the nipple drinker, the water will go out.

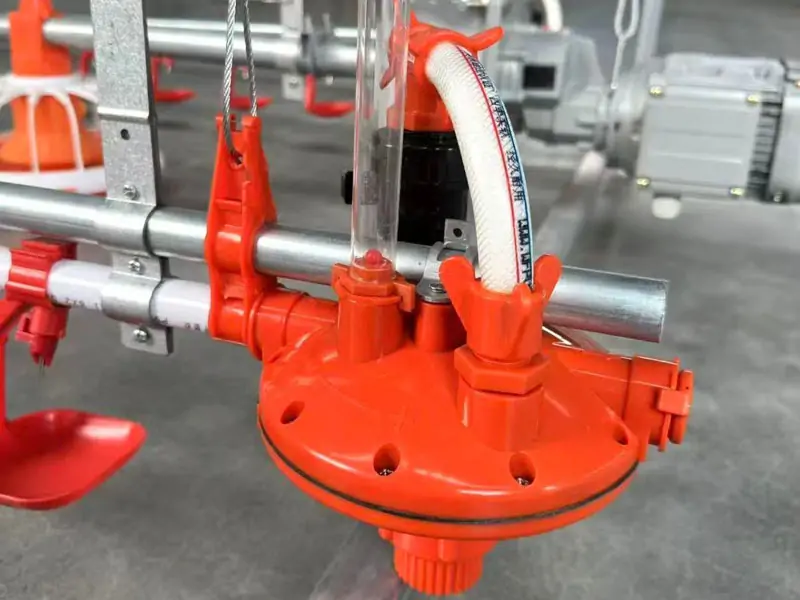

Automatic drinking system
1. Pressure regulator 2. Flexible adjust, long lifespan
Plastic Floor System

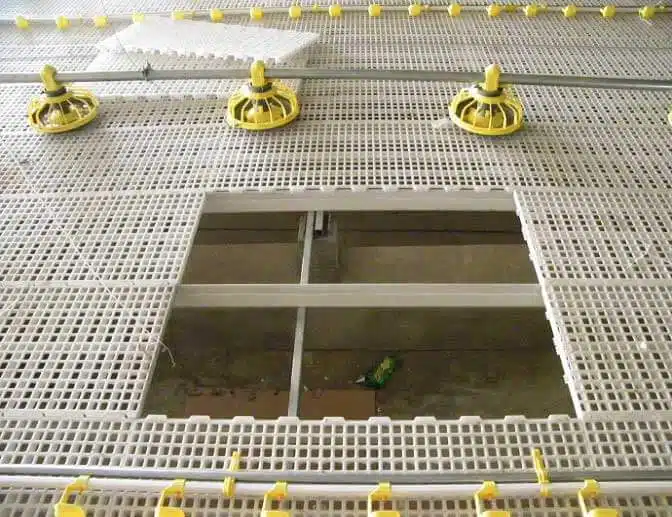

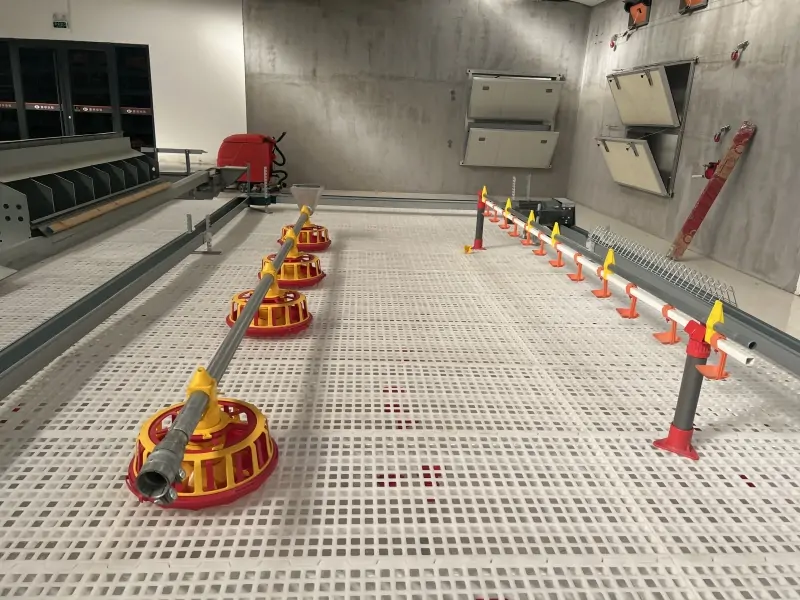

Plastic Floor
1. Easy for broilers’ chicken coop manure cleaning. 2. PVC blending extrusion, smooth and clean, and burr-free. 3. Corrosion resistant,anti-aging, good design, and no waste 4. The surface width is 25mm, the gap is 11mm or 21mm, and the surface is with non-slip streaks. The size width is 500mm, and the length is 1000,1500,2000.3000mm. It can also be customized according to customers’ demands. 5. Easy maintenance, if there is something wrong, it is easy to change a new piece.
Environment Control System

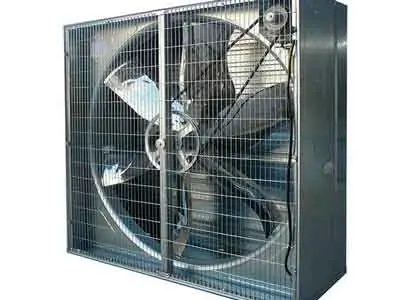

Ventilation fan system
The ventilation fan system controls the poultry house’s inner environment, provides fresh air and proper humidity for your chickens, and ensures your broilers produce maximum production.

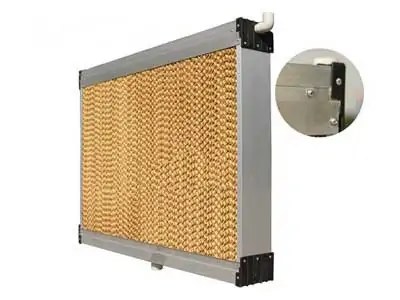

Cooling pad system
When the air goes through cooling pads,the heat will be taken down by the evaporation of water.So the air will be cooled before going into your poultry farms.

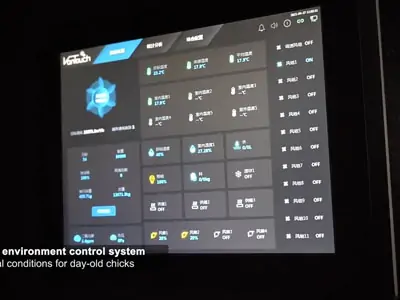

Environmental control equipment
The environment control system constantly monitors the environmental data of the chicken shed based on temperature and humidity sensor data. It controls the cooling fans, cooling pads, and the clear story automatically by a micro computer integrated system.
